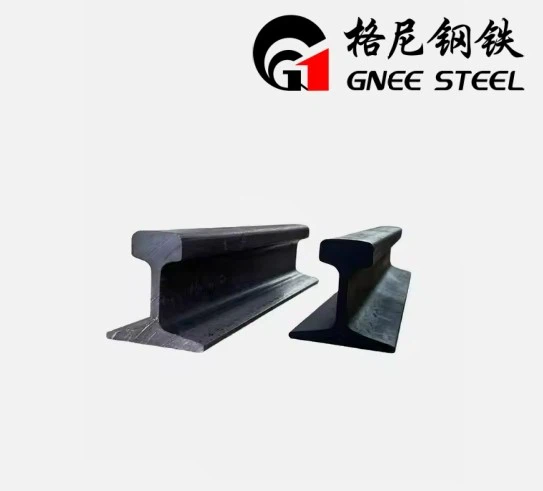

16-lb ASCE Đường ray
The 16-lb ASCE Rail is a type of track that meets the American Society of Civil Engineers (ASCE) standards. It is widely used in the United States and other areas where ASCE specifications govern railway infrastructure. The 16-lb ASCE Rail weighs 16 pounds per yard, or roughly 7.95 kilogam per meter. GNEE Rail is a trusted supplier of American standard rails, offering products such as 16-lb ASCE Rail, ASCE 25, 30, 40, 60, 75, 85, 90RA, 115RE, 136RE, and 175LBS. Ngoài ra, chúng tôi produce railway ốc vít like rail joint bars (fishplates), spikes, track bolts, and more. Customization is available. Contact us for more information.
16-lb ASCE Rail specification
Tiêu chuẩn: AREMA tiêu chuẩn
Material: SS, HH, LA, IH, U71Mn
Kích thước: 115RE, 136RE, ASCE60, ASCE85, etc.
Độ dài: 6-12, 12-25m
16-lb ASCE Rail dimension
| Danh nghĩa %
Mỗi Sân |
Kiểu của Đường sắt |
KÍCH THƯỚC IN INCH |
|||||||
| HT | BW | HW | W | HD | FD | BD | E | ||
| 12 lb. | ASCE | 2 | 2 | 1 | 3/16 | 9/16 | 1 3/32 | 11/32 | 57/64 |
| 16 lb. | ASCE | 2 3/8 | 2 3/8 | 1 11/64 | 7/32 | 41/64 | 1 23/64 | 3/8 | 1 1/16 |
16-lb ASCE Rail workshop
